Description

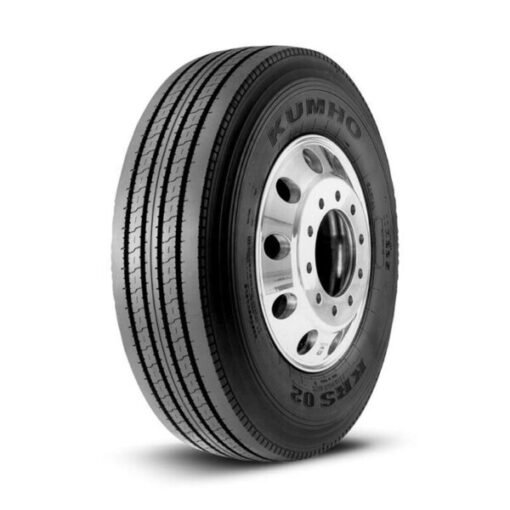

9.00R20 14PR G Kumho KRS02 Steer/All Position TL
The Kumho KRS02 9.00R20 14PR G is a radial, tubeless (TL) commercial truck tyre designed primarily for steer and all-position applications. It is engineered for durability in regional and long-haul transport, featuring a 14-ply rating (Load Range G) to handle substantial heavy-duty loads.
Features And Specification
| Part No. | 6002423 |
|---|---|
| Size | 9.00R20 |
| Ply Rating | 14PR |
| Brand | Kumho |
| Model | KRS02 |
| Position | |
| Tread Depth (32nd) | 18 |
| Standard Rim / Flange | 7 |
| Inflation Pressure (psi) | 115 |
| Max Load (lbs) | 5675 |
| Max Dual Load (lbs) | 5355 |
| Overall Diameter (in) | 40.2 |
| Overall Width (in) | 10 |
| F.E.T | 20.51 |
| Weight (lbs) | 100.2 |
| OTRUSA.COM UPC | 655222680341 |
| Bias / Radial | radial |
| Dimension (LxWxH) | 40.2 x 40.2 x 10.0 |
| Load Range | G |
| Standard Rim Display | 7 |
| TT / TL / Solid / Foam Filled | TL |
| Size Search | 90020 |
Performance And Design
- Application Versatility: Designed as an all-position tyre, it is most commonly used on the steer axle but can be utilised across all positions on a truck or bus.
- Load Capacity: According to tires-easy-truck.com, the 9.00R20 size has a maximum single load capacity of 5,675 lbs.
- Casing Durability: The 14-ply (Load Range G) construction provides the structural strength necessary for heavy-duty commercial use.
- Tread Characteristics: While specific tread depth for the 9.00R20 may vary, similar models in the KRS02 line (like the 285/75R24.5) feature deep tread patterns (approx. 26/32″) designed to resist irregular wear and provide high mileage in scrub-heavy regional applications.
