Description

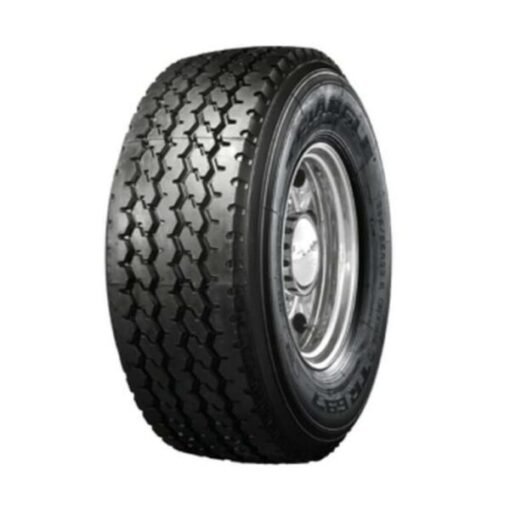

385/65R22.5 20PR L 158L Triangle TR697 TL
The Triangle TR697 385/65R22.5 20PR 158L TL is a premium wide-base radial truck tyre designed primarily for the drive axle of commercial vehicles. It is engineered for highway terrain and all-season use, offering high load durability and extended tread life.
Specifications
| Part No. | 10156970210 |
|---|---|
| Size | 385/65R22.5 |
| Ply Rating | 20PR |
| Brand | Triangle |
| Model | TR697 |
| Tread Depth (32nd) | 22 |
| Standard Rim / Flange | 12.25 |
| Inflation Pressure (psi) | 130 |
| Max Load (lbs) | 9920 |
| Overall Diameter (in) | 42.2 |
| Overall Width (in) | 15.3 |
| F.E.T | 30.34 |
| Static Loaded Radius (in) | 19.4 |
| Weight (lbs) | 165 |
| Aspect Ratio | 65 |
| Bias / Radial | radial |
| Dimension (LxWxH) | 42.2 x 42.2 x 15.3 |
| Load Range | L |
| Standard Rim Display | 12.25 |
| Super Single | 1 |
| TT / TL / Solid / Foam Filled | TL |
| Size Search | 38565225 |
Performance Features
Manufacturers and retailers highlight several design advantages for this model:
- All-Season Traction: Features four zigzag grooves that provide excellent lateral traction and help prevent hydroplaning by channeling water away from the footprint.
- Durability: Built with a reinforced casing and sturdy structure to handle heavy loads without deforming.
- Extended Wear: The symmetric ribbed tread design ensures even pressure distribution, which helps prevent irregular wear and extends the tyre’s service life.
- Retreadability: The casing is designed for toughness, making it a good candidate for retreading after the original tread is worn. Antminer S17
