Description

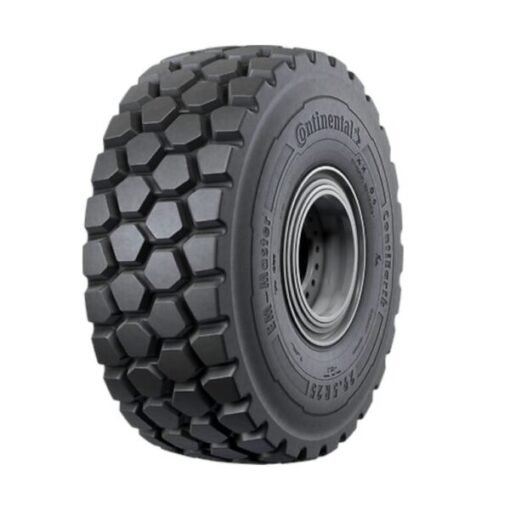

20.5R25 177B/186A2 Continental EM-Master E3 TL
The Continental EM-Master E3/L3 in size 20.5R25 is a premium radial earthmover tyre specifically designed for articulated dump trucks (ADTs), loaders, and dozers operating in demanding construction and mining environments. This tubeless (TL) tyre is engineered for versatility, featuring dual-marking to support both transport and loading applications.
Specifications
| Part No. | 12705170000 |
|---|---|
| Size | 20.5R25 |
| Brand | Continental |
| Model | EM-Master E3 |
| Tread Depth (32nd) | 47 |
| Standard Rim / Flange | 17 |
| Inflation Pressure (psi) | 123 |
| Max Load (lbs) | 20900 |
| Overall Diameter (in) | 58.5 |
| Overall Width (in) | 20.2 |
| Max Speed (mph) | 31 |
| Static Loaded Radius (in) | 25.9 |
| Weight (lbs) | 592.38 |
| Bias / Radial | radial |
| Dimension (LxWxH) | 58.5 x 58.5 x 20.2 |
| Equivalent Size | 525/80R25 |
| Standard Rim Display | 17 |
| “Star Rating” | 1star_2star |
| TT / TL / Solid / Foam Filled | TL |
| Size Search | 20525 |
Core Features & Benefits
- Tread Design: The E3/L3 pattern features normal tread depth and wide block spacing, providing excellent self-cleaning properties and powerful traction on soft or muddy terrain.
- Heat Management: The open tread design promotes better cooling, which reduces heat buildup during operation and extends the tyre’s service life.
- Integrated Technology: These tyres come equipped with pre-mounted sensors that monitor inflation pressure and temperature in real-time via the Conti Pressure Check system.
- Durability: Constructed with a cut-resistant compound and high carcass protection to minimize downtime from punctures or rock damage.
