Description

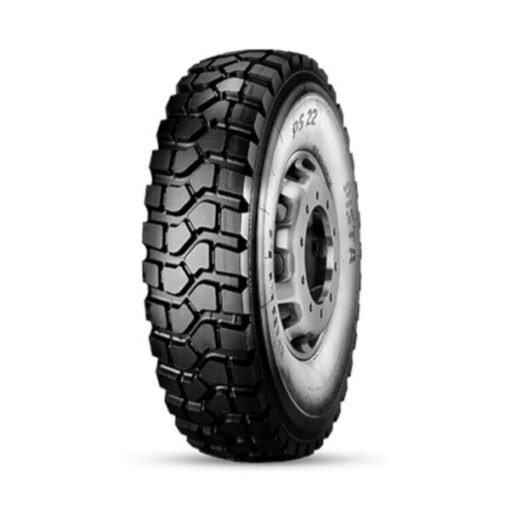

14.00R20 PIRELLI 22PR M 164/160G PS22 TL
The 14.00R20 Pirelli PS22 Pista is a premium, all-position radial tire specifically designed for military trucks and heavy-duty vehicles operating in demanding off-road environments. It features a robust 22-ply rating (22PR) and is engineered for use on soft natural surfaces like mud, sand, and grass, as well as asphalt.
Specifications
| Part No. | 200140000375 |
|---|---|
| Size | 14.00R20 |
| Ply Rating | 22PR |
| Brand | Pirelli |
| Model | PS22 Pista |
| Tread Depth (32nd) | 23 |
| Standard Rim / Flange | 10 |
| Inflation Pressure (psi) | 110.23 |
| Max Load (lbs) | 11023.11 |
| Max Dual Load (lbs) | 9920.802 |
| Overall Diameter (in) | 49.015 |
| Overall Width (in) | 15.315 |
| Flat Plate Area | 20 |
| Rolling Circumference (in) | 149.48 |
| Static Loaded Radius (in) | 22.32 |
| Weight (lbs) | 231.49 |
| Bias / Radial | radial |
| Dimension (LxWxH) | 49.015 x 49.015 x 15.315 |
| Load Range | M |
| Standard Rim Display | 10 |
| TT / TL / Solid / Foam Filled | TL |
| Size Search | 140020 |
Design Features & Applications
- Traction Performance: The tread consists of robust blocks and deep grooves designed to provide maximum grip on inconsistent terrain like sand and mud.
- Durability: Uses a cut-and-chip resistant rubber compound with tough ties between tread blocks to prevent tearing and chunking.
- Specialized Systems: The tubeless (TL) version is compatible with bead lock and run-flat systems, making it a standard choice for tactical and military applications.
